GB SERIES

COMPONENT SPEAKERS

GB40  4” (100 MM) AUDIOPHILE GRADE AUTOMOTIVE LOUDSPEAKER

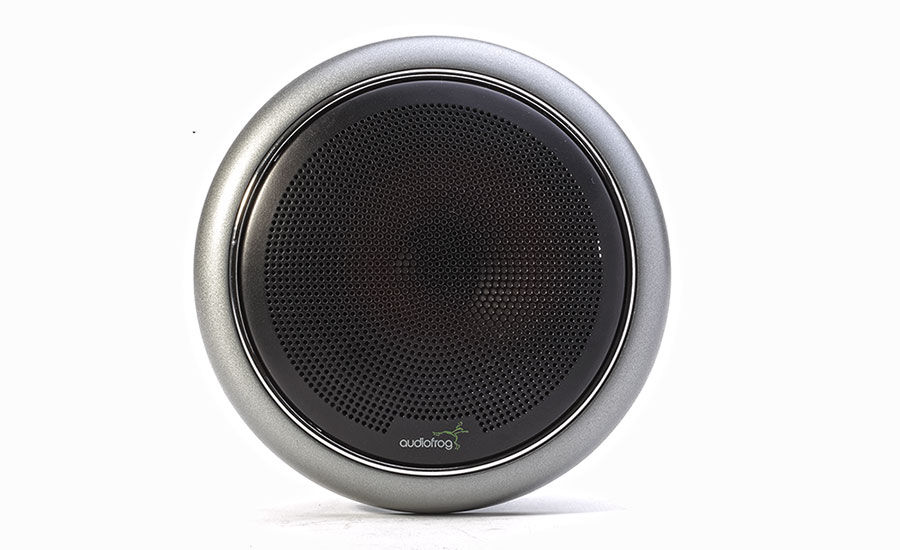

Audiofrog GB40
Audiofrog GB40

GB40  4” (100 MM) AUDIOPHILE GRADE AUTOMOTIVE LOUDSPEAKER

Audiofrog GB40
Audiofrog GB40

GB40  4” (100 MM) AUDIOPHILE GRADE AUTOMOTIVE LOUDSPEAKER

Audiofrog GB40
Audiofrog GB40

GB40  4” (100 MM) AUDIOPHILE GRADE AUTOMOTIVE LOUDSPEAKER

Audiofrog GB40
Audiofrog GB40

GB40  4” (100 MM) AUDIOPHILE GRADE AUTOMOTIVE LOUDSPEAKER

1/3

Overview

​

Designed as a dedicated midrange driver for application in door panel or dashboard installations, the GB40 is optimized for an infinite baffle application or an enclosure of at least 1 liter.



The GB40’s 41 mm mounting depth makes it an easy fit in locations that require a shallow midrange.



Like all the GB Series midrange speakers, the GB40 includes a grille and installation kit that can be customized to blend with or highlight nearly any installation.

Features

​

  • Treated Paper Cone

  • 1” (25 mm) Voice Coil on Fiberglass Former

  • Milled Flat Single-Layer CCAL Voice Coil

  • Copper Inductance- and Distortion-Reducing Pole Piece Cap

  • Neodymium Motor with Bucking Magnet

  • Flat, Progressive Nomex® Spider

  • Nitrile Butadiene Rubber Surround

  • Proprietary Vented Cast Aluminum Basket

  • Chrome-Plated Cast Zinc Motor Housing

  • Screw Terminals

  • All-Metal Grille and Mounting Kits Included

  • Hex Screws and Tools Included

  • Removable and Paintable Grille

  • Rub-On Grille Logos Included for Custom Installation

Technical Details

​

Specifications:

  • Nominal Impedance: 4 Ω

  • RMS Power Handling: 100 W (with recommended crossover)

  • Peak Power Handling: 300 W (with recommended crossover)

  • Frequency Response (-3 dB): 80 Hz – 12 kHz

  • Sensitivity (2.83 V/1 M): 87 dB

  • Recommended Amplifier RMS Power Range: 20 W – 100 W

  • Recommended High Pass Filter Frequency and Slope: ≥ 110 Hz, ≥ 12 dB/oct

  • Recommended Low Pass Filter Frequency and Slope: ≤ 6 kHz, ≥ 12 dB/oct





Dimensions:


Frequency Response & Impedance:

GB40-Frequency Response.gif

Thiele & Small Parameters:

  • Revc: 3 Ω

  • Levc@1kHz: 0.06 mH

  • Sd: 59.4 cm²

  • Mmd: 5.18 g

  • Mms: 5.45 g

  • Cms: 574 µM/N

  • Vas: 2.89 liters

  • Fs: 90 Hz

  • BL: 3.9 TM

  • Qms: 5

  • Qes: 0.62

  • Qts: 0.55

  • Xmax (1-way linear): 4.5 mm (3/16”)

  • Basket Displacement: 0.106 liters (0.004ft³)

​

​
