Overview

​

Designed as an easily installed premium upgrade, the GS62 includes a proprietary injection-moulded ABS and fiberglass vented basket. Ease of installation is ensured with a 1” fabric dome neodymium tweeter that extends a mere 2mm above the surround–sure to fit under factory grilles.

The tweeter faceplate includes a small waveguide designed to boost the tweeter’s low frequencies and ensure a smooth transition to the midrange. That transition is also controlled by a 12dB/octave high pass filter and 6dB/octave low pass filter. The entire crossover network is mounted to a PC board integrated into the basket, which also secures the terminals.

The GS62 woofer includes a 1” copper voice coil wound on a Kapton® former for superior power handling. A multi-adapter is included in the kit for easy installation in a variety of factory locations.

Features

​

• Injection moulded ABS plastic and fiberglass vented basket

• Parabolic polypropylene cone

• Nitrile butadiene rubber surround

• 1” (25mm) copper voice coil on Kapton® former

• Flat progressive Nomex® spider

• Ferrite magnet

• 1” (25mm) fabric dome neodymium tweeter

• Tweeter includes reflection absorbing and diffusing foam pad

• Low-profile tweeter waveguide helps to provide smooth transition to the midrange

• Fast-on terminals secured with integrated PC board

• Integrated passive crossover (12dB/octave high pass and 6dB/octave low pass)

• Grille and multi-adapter included

Technical Details

​

Specifications:

• Nominal Impedance: 4Ω

• RMS Power Handling: 70 W (with recommended crossover)

• Peak Power Handling: 200 W (with recommended crossover)

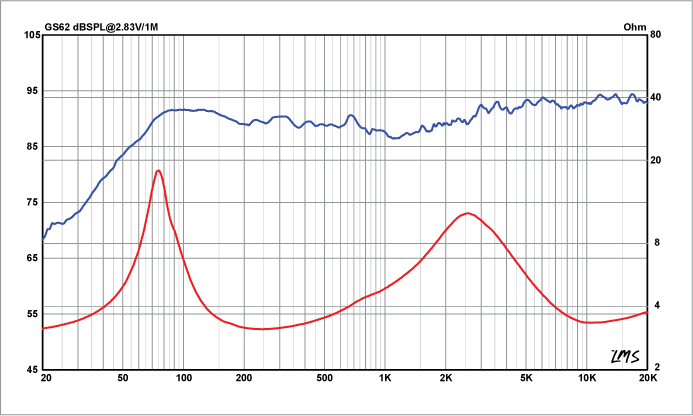

• Frequency Response: 50 Hz – 20 kHz

• Sensitivity (2.83 V/1 M): 89 dB

• Recommended Amplifier RMS Power Range: 15 W – 75 W

Dimensions:
