Overview

​

Designed as an easily installed premium upgrade, the GS693 includes a proprietary injection-moulded ABS and fiberglass vented basket shallow enough to fit factory door locations when necessary. 1” (25mm) and 3/4“(20mm) fabric dome tweeters are mounted in a low-profile housing designed to fit easily under factory grilles.

​

The tweeter faceplate includes waveguides designed to boost the tweeters’ low frequencies and ensure a smooth transition to the midrange. That transition is also controlled by a 12dB/octave high pass filter and 6dB/octave low pass filter.

​

The entire crossover network is mounted to a PC board integrated into the basket, which also secures the terminals. The GS693 woofer includes a 1” copper voice coil wound on a Kapton® former for superior power handling.

Features

​

• Injection moulded ABS plastic and fiberglass vented basket

• Parabolic polypropylene cone

• Nitrile butadiene rubber surround

• 1” (25mm) copper voice coil on Kapton® former

• Flat progressive Nomex® spider

• Ferrite magnet

• 1” (25mm) and 3/4″ (20mm) fabric dome neodymium tweeters

• Tweeters include reflection absorbing and diffusing foam pad

• Low-profile tweeter waveguide helps to provide smooth transition to the midrange

• Fast-on terminals secured with integrated PC board

• Integrated passive crossover (12dB/octave high pass and 6dB/octave low pass)

• Grille included

​

​

Technical Details

​

Specifications:

• Nominal Impedance: 4Ω

• RMS Power Handling: 100 W (with recommended crossover)

• Peak Power Handling: 300 W (with recommended crossover)

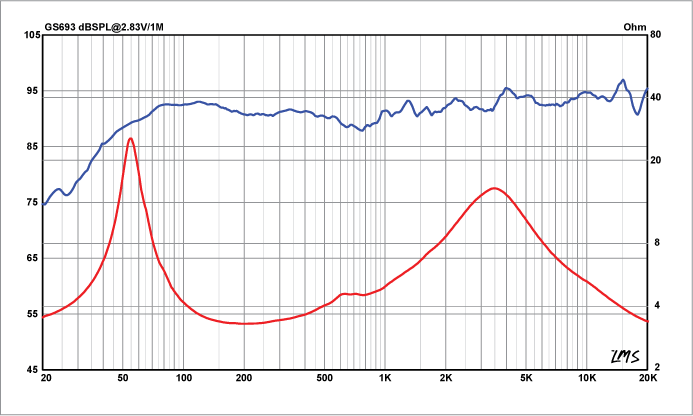

• Frequency Response: 42 Hz – 20 kHz

• Sensitivity (2.83 V/1 M): 92 dB

• Recommended Amplifier RMS Power Range: 15 W – 75 W
